Description
Overview
Lots of applications need to process images in some way. Load them, store them, write them back out to files, scale them, rotate them, adjust the color in part (or all) of the image, etc. The purpose of this assignment is to show you how you can perform some of these operations on a particular type of file. You will be writing a program that does the following:
- Read in a number .TGA files in a binary format
- Process the image data store within those files in a variety of ways
- Write out new .TGA files in the same binary format
Reading binary data
Binary file operations are about two things: reading bytes from the file and putting them into memory, or writing bytes from memory directly to the file. There is no conversion, no interpretation, and no converting strings to numbers or vice-versa. It’s just bytes from the file to memory, or bytes from memory to the file. Whether the data is simple or complex, it’s all just a series of these byte-copying operations.
Refer back to the presentation BinaryFileIO on Canvas for a more detailed explanation on how to read and write binary data.
Viewing TGA files
Some operating systems won’t let you open TGA files natively (looking at you, Windows), so you will need to install some sort of viewer for them. If you already have a tool installed that lets you open and view these, great.
Note: Not having a way of viewing these files will NOT stop you from writing code to open/read/write TGA files, it just means you can’t open the file in an application to view its contents, which will make it a bit more difficult to understand the process you are working with. Here are some tools you can install to view TGA files:
Visual Studio – Say what?! Yes, Visual Studio includes an image editor, which will let you open and manipulate image files on a basic level. Simply drag a TGA file into Visual Studio and it will open up.
Photoshop (CC or Elements, both have free trials) https://www.adobe.com/products/photoshop.html https://www.adobe.com/products/photoshop–elements.html
GIMP (GNU Image Manipulation Program) – a free, open-source alternative to the likes of Photoshop https://www.gimp.org/
TGAViewer – A simple program whose only purpose is to open and view TGA files.
http://tgaviewer.com/download.aspx
File format description
Since binary files are all about bytes, they are typically an unreadable mess to any program (or person) that doesn’t know exactly how the data is structured. In order to read them properly, you must have some sort of blueprint, schematic, or breakdown of how the information is stored. Without this description of the file format, you would just be reading random combinations of bytes attempting to get some useful information out of it—not the most productive process.
The TGA file format is a relatively simple format, though it has some options which can get a bit complex in some cases. The purpose of this assignment is not make you a master of this particular image format, so a few shortcuts will be taken (more on those later). First, a quick look at the file format:
So to start, there is a header. Every file format is potentially different, but In a TGA file the header data takes up 18 bytes total, across a number of variables, and this information describes the rest of the file. Depending on the specifics of the file (or your scenario), some of those variables may have a value of zero, or they may be ignored. (In the case of the TGA format some of the values in the header were once very important, but nowadays are not used—the format still has them for compatibility reasons.)
FOR THIS ASSIGNMENT: the files you work with will be 24-bit true color, uncompressed images. What you need from this header are two things: The width of the image, and the height of the image.
From the header description, the image width and image height are at a 12 byte offset and 14 byte offset, respectively, from the beginning of the file. You may find it helpful to (especially as practice) to read each piece of data in the header into a structure. Then, once the header has been completely read, you can go about using it for whatever purposes you have in mind. A structure for the header in this case might look like this:
struct Header
{ char idLength; char colorMapType; char dataTypeCode; short colorMapOrigin; short colorMapLength; char colorMapDepth; short xOrigin; short yOrigin; short width; short height; char bitsPerPixel;
char imageDescriptor;
}; Sample file header output
// Something like this… Header headerObject;
file.read(&headerObject.idLength, sizeof(headerObject.idLength)); file.read(&headerObject.colourMapType, sizeof(headerObject.colourMapType));
Alternatively, you might jump right to the byte offset of the width (12 bytes) and the height (14 bytes) and then read 2 bytes for each of those variables, and then be on your way.
Seeking?
Sometimes you want to jump to a specific location in a file. For example, you know the data that you want is a 4-byte integer which is always 34 bytes from the beginning of the file. If you are using the ifstream or fstream objects for file input, the function that you would use is:
// g means “get” so you are seeking a specific location from which to “get” data. istream& seekg(streampos pos); istream& seekg(streamoff off, ios_base::seekdir way);
The first version of this function lets you jump to an absolute location in the file. For example:
fstream someFile(“exampleFile.xyz”, ios_base::in | ios_base::binary); someFile.seekg(34); // Jump to a 34-byte offset from the beginning of the file
// Jump forward 12 bytes from where you are now (which would put you at a 46-byte offset,
// if combined with the previous call to seekg.
// This is useful if you want to skip over some information you don’t need.
someFile.seekg(12, ios_base::cur);
someFile.seekg(0); // Go back to the beginning of the file
Color Data
After the header is the really important part, the image data itself. In a .TGA file the image data is stored in a contiguous block of pixels equal to ImageWidth * ImageHeight. The contents of a single pixel can vary depending on the properties of the file, but for this assignment we are using images with 24-bit color. This means that each pixel would contain:
1 byte (8-bits) for red data, 1 byte (8-bits) for green data, 1 byte (8-bits) for blue data
Each of those bytes will contain a value from 0-255, which makes unsigned char the perfect data type to store them.
So if a file had a size of 200×300, it would contain 60000 pixels, each of which contains 3 bytes of data, like this:
You could store that data in a single array of bytes 180000 elements long, create some Pixel structure which contains 3 bytes, and then make an array or a vector of 60000 Pixels, etc. Often, when talking about color, we describe them in RGB order—red, green, and blue. However…
IMPORTANT NOTE: In a .TGA file, the colors are stored in reverse order, such that the first byte is the blue component, the second byte is the green component, and the third byte is the red component.
What about the order of the pixels themselves? In many image files (including .TGA files), the first pixel in the file represents the BOTTOM LEFT corner of the image. The last pixel represents the TOP RIGHT corner of the image. If you read, store, and write the pixel data in the same order, you don’t really have to worry too much about this. If you wanted to copy data into a particular part of the image, however… that can be a bit tricky. For example, to copy some 2×2 image into the top left corner would require you change pixels 16, 17, 24, and 25.
|
So, to summarize: The file contains a header, which is 18 bytes in length. Stored within those 18 bytes are pieces of information describing the image content—the width and height of the image, how the color data is stored, and so on. All you need from the header is the width and the height. However, when writing a file, you should provide ALL the header data, whether you are using it or not. Because of this, you should store this data along with the image data itself.
What’s in a pixel?
Fundamentally, a pixel (short for picture element) is the smallest unit of data in an image, representing a color at a specific location in the image. (Pixels also can mean a particular element from a display device, but doesn’t matter for this assignment.) A pixel is represented by several components, often red, green, and blue (RGB color), but possibly cyan, magenta, yellow, and black (CMYK color).
By changing the values of these 3 or 4 components, you can get any color you like. RGB values are often 0-255, as in this assignment, though you may see them stored as floating-point values from 0-1. For example:
Storage
How to store the TGA file? You would need:
The header. 18 bytes worth of data (even if really only care about 4 bytes – 2 bytes for width, 2 for height). You will need all 18 bytes of this header data to properly write a .TGA file.
The pixels. A pixel is 3 values: R, G, and B, and each of those is a number from 0-255. You will need a way to store a lot of them; a medium-sized image that’s 512×512 contains 262,144 pixels.
That’s just the TGA data. That’s the information that goes in and out of the file. If you were storing this data in a class, and using that class to help read/write the information, you might store additional data to help you with the process. Exactly what that data is, is up to you.
Writing a file
Writing a .TGA file is a pretty straightforward process. You first write the header to the file, and follow that with the image data. If you have any footer information, you would write that after the image data.
Ramping up
To get familiar with this process, see if you can do these exercises:
Load a file, and then write that same file data out with a different name – no changes, just a simple passing of data from a file to memory, and then back to a (different) file.
Open an existing file, assign to all of the pixels a single color (red, green, whatever). Save the file out.
Open an existing file, fill it with random colors (remember a color is made of multiple channels).
Write some code to create a brand new file from scratch—borrow some header values from an existing file to get started, or create your own. Fill that image with a single color—create an all-red, or all-blue image.
Image manipulations
There are many different ways that you can manipulate an image. Photoshop and similar programs have dozens of different algorithms. The basic concept behind these manipulations is that you have 2 layers, A and B. They get run through an algorithm to generate an output, C.
Implementation-wise, each “layer” is an image, each image is made up of some number of pixels, and each pixel has a red, green, and blue component. So. Ultimately the combinations of A and B involve the combination the red component of the first pixel of A with the red component of the first pixel of B, and the green component of the first pixel of A with the green component of the first pixel of B, (ditto for the blue component), and so on for each pixel, storing the results in the corresponding pixel of some new image, image C.
A description of the different blending modes can be found here:
http://www.simplefilter.de/en/basics/mixmods.html
You will not be implementing all of those blending modes. For this assignment, you will be implementing the Multiply, Subtract, Screen, and Overlay blending modes. In addition, you should be able to modify the individual channels by adding a value to them (such as adding 20 to the red channel, or “adding” -20 to the blue channel), or by scaling them (such as scaling the green channel by 50%). The specific operations you will have to perform are listed below, under the heading Tasks.
Calculation tips
The pixel data is stored in unsigned char variables, with values from 0-255. When modifying those values, you may go over or under that range, which potentially causes some issues. For example, if you wanted to boost the red of a pixel by 100, and the original value was 200, the final result would be 300, but since the range of the unsigned char is 255, 300 would cause an overflow to 44.
Similarly, if you multiplied a value of 140 with a value of 78, the result of 10,920 would be just a tiny bit too large. So what can you do?
In some cases, you might need to clamp values. In the case of addition/subtraction, you would clamp to the maximum or minimum values of the data type after the operation… however, to avoid the overflow/underflow issue, you might need to perform the calculation in a data type that can store a larger range (like an integer), then clamp and reassign to another variable afterward.
For some operations (like multiplication), they work based on a normalized value, from 0-1. So, you might convert your 0-255 value to a 0-1 value (dividing the original by the maximum), perform the calculation with 0-1 values, and the convert back to the original range afterward (multiplying the 0-1 range by the maximum). You could also just multiply the original two values, and divide the result by 255… you’ve got options, and it’s up to you to decide how best to implement them.
Normalizing values is often used because it allows for the creation of formulae which can describe a process which works in any situation, regardless of the specific values. For example you might deal with a color range of 25-172, but by normalizing them to a 0-1 equivalent (which would require a little more work than just dividing by 255 in this case), you can use with in the same sort of formula as anything else.
Rounding
If you do convert values to and from floats, be aware that you may encounter some floating-point precision issues, and may need to round your values. To do that, simply add 0.5f to the final value before assigning back to an unsigned char variable. Why 0.5? If the result should be 80, but the floating point calculation evaluated to 79.871 or some such, adding 0.5 would bring it up to 80.371, which then gets truncated to 80. If the result should be 80, but the final calculation was as high as 80.4, adding 0.5 would give you 80.9, then truncated to 80.
Tasks
This assignment is broken into 10 different parts, each of which is worth 10% of the overall grade (20 points apiece). For each of these tasks you will:
- Load one or more files from the “input” folder
- Perform some operation(s) on the loaded file(s)
- Write the results to a new .TGA file (named part#.tga) in the “output” folder. The “examples” folder has completed versions which you can use to test against your files. If your file is identical to its counterpart in the Examples folder, you’re done with that part!
For example:
Part 1: Load the file “layer1.tga” and “pattern1.tga” (both from the input folder), and blend them together using the Multiply algorithm (“layer1” would be consider the top layer). Save the results as “part1.tga” (in the output folder), and your file should match EXAMPLE_part1.tga (from the examples folder).
- Use the Multiply blending mode to combine “layer1.tga” (top layer) with “pattern1.tga” (bottom layer).
- Use the Subtract blending mode to combine “layer2.tga” (top layer) with “car.tga” (bottom layer).
- Use the Multiply blending mode to combine “layer1.tga” with “pattern2.tga”, and store the results temporarily. Load the image “text.tga” and, using that as the top layer, combine it with the previous results of layer1/pattern2 using the Screen blending mode.
- Multiply “layer2.tga” with “circles.tga”, and store it. Load “pattern2.tga” and, using that as the top layer, combine it with the previous result using the Subtract blending mode.
- Combine “layer1.tga” with “pattern1.tga” using the Overlay blending mode.
- Load “car.tga” and add 200 to the green channel.
- Load “car.tga” and scale (multiply) the red channel by 4, and the blue channel by 0.
- Load “car.tga” and write each channel to a separate file: the red channel should be
“part8_r.tga”, the green channel should be “part8_g.tga”, and the blue channel should be “part8_b.tga”
- Load “layer_red.tga”, “layer_green.tga” and “layer_blue.tga”, and combine the three files into one file. The data from “layer_red.tga” is the red channel of the new image, layer_green is green, and layer_blue is blue.
- Load “text2.tga”, and rotate it 180 degrees, flipping it upside down. This is easier than you think! Try diagramming the data of an image (such as earlier in this document). What would the data look like if you flipped it? Now, how to write some code to accomplish that…?
Testing your files
For all but the simplest of programs, tests are needed to verify that process was executed correctly. We write code to do things more quickly than we can, whether it’s a single, complex problem, or many smaller problems. Testing should be no different. Why verify something by hand when you can have a program do it for you? (The one small issue… you have to write that program first!)
The overall idea of any test is the same: Does <THING> meet <CRITERIA>, where the criteria are equal to, less than or greater than, etc. The tests are always the same. Always. It’s the DATA that can get complex. You might have a class object with 35 different variables (some of which may be complex class objects that have their own dozens of variables, some of which may be complex class objects, etc…), or… maybe just a few integers that need to be compared. When creating tests, think of these things:
- What are all the pieces of significant data in this scenario? The word SIGNIFICANT is important—sometimes you may have data that can be ignored for tests, while in some cases every single class variable, down to the lowest boolean or character variable must be a match.
- For each of those significant pieces, are they equal to that of the other object? If A and B both have 8 different variables, is A.variable1 equal to B.variable1? What about A.variable2 and B.variable2, etc.
In this assignment you are dealing with image files. The rules of programming have not suddenly changed because of this! The above concepts are still the same. Writing a program to compare data is still the way to do things. Consider the following two images:
Left: “True” red—255, 0, 0 Right: 254, 0, 0—a convincing impostor
Those two images look the same. They have the same shape, same color, etc. However, they are very, very different. Between the two of these, they have 0 pixels in common! Just looking at them, however, it’s impossible to tell. So we write tests. Comparing a single pixel of that image to the same pixel in the other would reveal that the G and B values (both 0) are equal in each image, but the red values are not. If we want ALL data to be the same for an equality check, that check would fail.
Writing Tests
How you show the results of a particular test? Imagine this simple scenario: You have two integers, with values of 2 and 4. You pass them to a function called Add(), which adds them and returns the result. How would you test this? What would the code look like for this simple example? Perhaps something like this:
cout << “Calling Add() with 2 and 4\n”;
// Hard-code values to test against known values/results int result = Add(2, 4);
cout << “Expected result: 6” << endl; cout << “Actual result: ” << result << endl;
if (result == 6) cout << “Test successful!\n”; else cout << “Test failed!\n”;

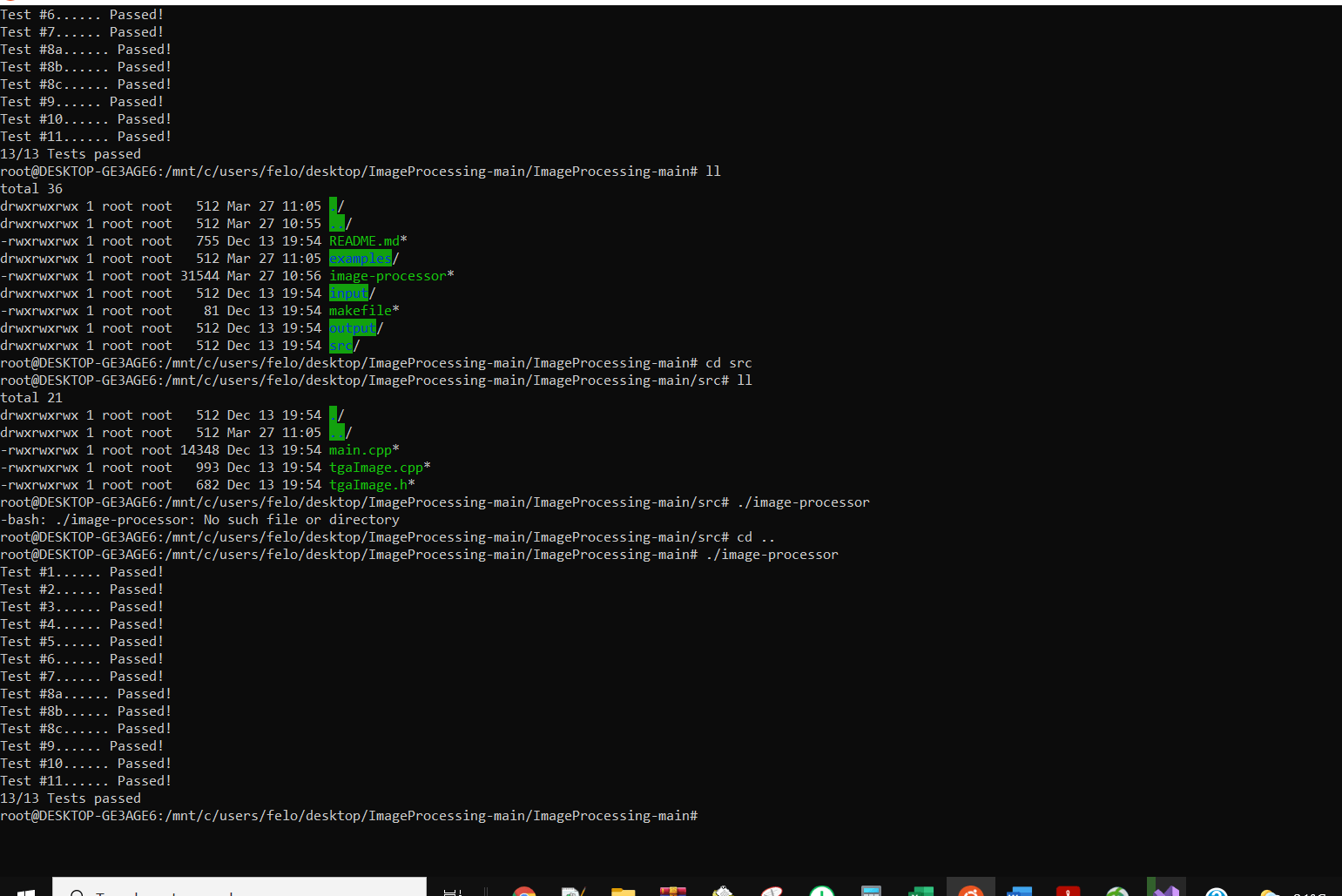

The output for such a test might resemble something like following image:
A simple test of a function
Now you could repeat this process for a dozens of other parts of your code, and display all the results at the end (something you’ve seen already on zyBooks):
Every time you make any changes to your code, these tests could be executed, constantly keeping you updated as to whether or not your code is working correctly. It requires effort to create these tests, but the payoff in saved time is considerable.
For this project:
The files in the examples folder can be used to compare against your output. If you load one of those files and compare it against a file you created, ALL of the data elements should be 100% identical. If even one component of one pixel is off by the tiniest amount, it is a different image. Every byte/variable of the header must match, and every pixel must match, exactly.
Makefiles
For this project you are going to use a simple makefile to help you build your project from the command-line interface (to assist with building/grading your project). Check out the page on Canvas
(Pages->Makefiles) for more information on the process of creating a makefile.
Extra Credit
Value: 5 points (toward the maximum 20 points of extra credit you can receive in this course)
Task: Create a new file that is the combination of car.tga, circles.tga, pattern1.tga, and text.tga. Each source image will be in a quadrant of the final image, and the result should look like the image below. The original images should not be modified in any way; the final image will have to be large enough to accommodate all of them.
Save this file in the output folder, and name it “extracredit.tga”
